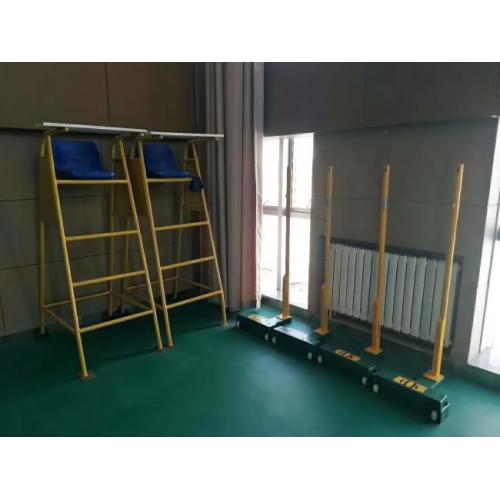

High quality badminton post system

Professional BWF-Approved Portable Badminton Net System – Durable, Precision-Tuned, and Tournament-Ready

This high-performance Badminton Post system is officially endorsed by the Badminton World Federation (BWF), making it ideal for competitive play, training facilities, and recreational courts worldwide. Engineered with precision engineering and premium materials, this portable setup ensures compliance with international standards while offering unmatched stability, ease of use, and long-term durability.

Key Features:

• • BWF-certified net support structure designed for official matches and professional development
• • Seamless steel uprights with optimized diameter and wall thickness for enhanced rigidity
• • Anti-slip cast iron base weighing 130kg per pair for maximum court anchoring
• • Integrated tensioning mechanism for quick, secure net adjustment without jamming
• • Nylon rollers with smooth 65mm diameter for effortless repositioning on indoor surfaces
• • Electrostatic powder-coated finish resistant to chipping, fading, and corrosion
• • Optional BWF-approved polyester net in burgundy color with white canvas edge stitching

Detailed Description:

The core of this badminton system lies in its robust construction: a seamless steel tube measuring Φ40×4.0mm forms the vertical posts, ensuring minimal flex under tension. Each post includes strategically placed net hooks for rapid installation and removal, plus an external rope tie point on one side and a mechanical tensioning device on the other—eliminating manual adjustments and preventing spontaneous loosening during play. This design guarantees consistent net height across the entire court: 1524±5mm at center and 1550±8mm at sidelines, meeting all regulatory requirements for international competition. The vertical alignment tolerance remains within 1/500 of the horizontal plane, ensuring no interference with court boundary lines or player movement.

The base unit, made from precision-cast iron, measures 500 × 480 × 130mm and weighs 130 kilograms per pair—providing exceptional resistance against tipping or shifting even under intense gameplay conditions. Rubberized anti-slip pads enhance grip on gym floors, while built-in nylon wheels (φ65mm × 40mm) allow for convenient relocation without damaging hardwood, synthetic, or tile flooring. These features make it suitable not only for permanent installations but also for temporary setups in multi-purpose sports halls, schools, clubs, and event venues.

The optional badminton net itself is crafted from durable polyester fabric in a rich burgundy tone, featuring a 7.5cm-wide white canvas-wrapped seam along the top edge for improved aesthetics and structural integrity. With a mesh size of 18mm x 18mm and thread diameter exceeding 5mm, the net offers excellent airflow, visibility, and longevity. Its dimensions—760mm wide by 6100mm long—are perfectly suited for singles and doubles play, adhering strictly to standard badminton court specifications.

Surface Treatment & Aesthetic Finish:

Every component undergoes a multi-stage finishing process: initial shot blasting and sanding prepares the metal surface, followed by automatic electrostatic powder coating applied uniformly at 80–120 microns thick. This results in a scratch-resistant, fade-proof exterior with a matte gloss level below 30%, free from imperfections such as bubbles, runs, speckles, or peeling. The base receives additional treatment—cleaning, puttied smoothing, and final painting—to ensure both visual appeal and functional resilience over time.

Use Cases:

This versatile badminton system serves athletes, coaches, and facility managers globally—from elite training centers requiring tournament-grade accuracy to community centers seeking affordable yet reliable equipment. Whether used indoors on hardcourt surfaces or outdoors on stable ground, its modular design supports fast assembly, easy storage, and frequent relocation. It’s particularly well-suited for schools, universities, sports academies, hotels hosting tournaments, and mobile sports providers looking to offer professional-grade badminton experiences anywhere.

User Feedback Highlights:

Users consistently praise the system's balance between portability and performance. Many note how the tensioning mechanism simplifies setup compared to traditional models that require constant readjustment. Others highlight the quiet operation of the nylon rollers and the absence of floor damage—an important factor when using expensive gym flooring. The powder-coated finish has also received positive remarks for maintaining appearance after months of heavy use, even in humid environments.

Frequently Asked Questions:

Is this system suitable for outdoor use? Yes, though it is primarily intended for indoor environments due to the nature of the net material and base stability. For extended outdoor exposure, consider protective covers or shaded storage.

Can I replace the net separately? Absolutely—the net is sold optionally and can be swapped out easily using the integrated hooks and cord system.

How do I maintain the post’s vertical alignment? Regular checks are recommended, especially after transportation or heavy usage. The built-in locking mechanism helps preserve alignment, but periodic calibration ensures optimal performance.

What makes this different from cheaper alternatives? Unlike mass-produced units, this system meets BWF standards, uses certified materials, and includes engineered components like precision-tuned tensioning systems and non-damaging mobility solutions—offering superior value for serious players and institutions alike.
