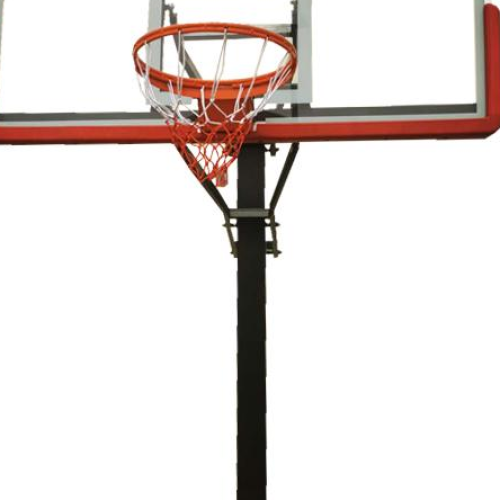

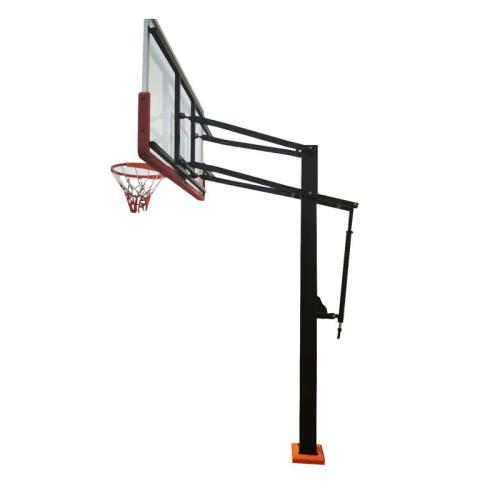

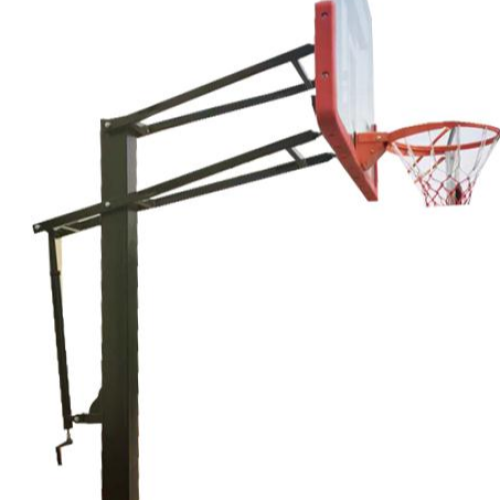

Adjustable In-Ground Basketball System Wholesale

1. Product specifications and materials
The outstretched arm is 0.8m , one the rim of ring is adjustable 1.8m-3.05M away from the ground, the support were inserted in the ground.
2．backboard：
Specification: 1800*1050x2.5 (mm) PC backboard ( or 50mm smc backboard or high-strength safety glass backboard with high transparency), good weather resistance、 anti-aging、 corrosion resistance、 not easy to blur and other characteristics. and the lower side of the backboard covered with a U-type padding,the height and thickness of before and after the surface are all ≥20mm, bottom thickness ≥50mm, can effectively protect transport It is not hurt to mobilize dunks
3．ring：
The backboard is with standard basket ring and Φ18 steel, which is rolled on the automatic tube winding machine. The hoop has good tensile properties and high strength. The use of high-strength stainless steel bolts, nuts and washers is strong, which can prevent loosening in long-term use. The lower rim of the ring is welded with 12 seamless steel tubes with a φ10*2mm, and PE rope is worn inside. The white rope net is evenly suspended on the PE rope in the pipe, and the basket ring is a double spring elastic structure
4．surface treatment
The final surface treatment was finished on the automatic spraying line by electrostatic epoxy based powder spraying on the automatic spraying line. The thickness of the coating was 80um to 120um. The product has the advantages of acid and alkali resistance, moisture and heat resistance, anti-aging, beautiful appearance, and the product coating formula does not contain toxic elements, to avoid damaging the health of users.
5. buried instruction
Note: Foundation size as shown in the following figure, the size of pile foundation: excavation horizontal size of 800X800mm, depth of 1000mm. The buried part is M18X900 buried hook, the buried flange is 7 holes flange, and the one is two holes near the edge line of the site
* first at the bottom put into 100mm high C20 concrete, and then put the embedded parts into the pit (two buried hooks direction
near the site edge)
* and then injection of concrete 800mm high ,
* fill in the backfill Layer 100mm.
6、fastene r
All fasteners of the basketball backstop use the Jinyi brand screw, which is a well-known international brand. The surface is hot-dip galvanized to ensure that it will not rust for a long time
