Iron straight inserting volleyball post(hand fit)

Adjustable Ground-Mounted Volleyball Net System with Telescopic Pole and Safety Features

This high-performance volleyball pole system is engineered for durability, safety, and precise net height adjustment. Designed for outdoor courts worldwide, it meets international standards for competitive play while offering enhanced athlete protection through thoughtful material selection and advanced engineering. Whether you're setting up a recreational court or a professional training facility, this Volleyball Post delivers reliable performance across varying terrains and climates.

Key features include a pre-buried base with 400mm embedding depth for stable installation, ensuring long-term structural integrity even under heavy use. The telescoping design allows vertical adjustment from 2060mm to 2550mm—ideal for both men’s and women’s volleyball regulations—while the internal screw-lifting mechanism provides smooth, controlled movement without manual strain. This makes it perfect for coaches, players, and facility managers who require consistent net positioning for optimal gameplay.

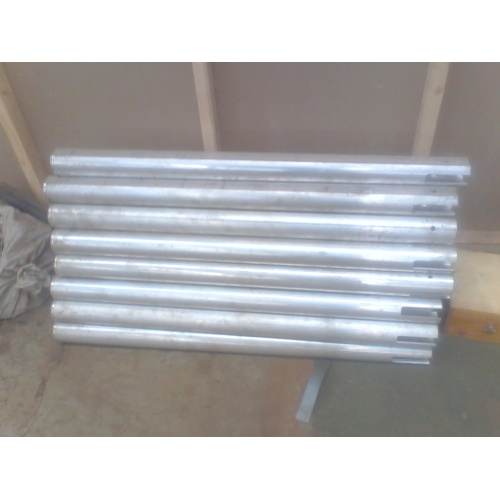

The main support structure uses seamless steel tubing (Φ89mm x 5.0mm wall thickness), while the adjustable section employs slightly smaller but equally robust Φ76mm tubes (4.0mm wall). This dual-layer construction ensures rigidity during dynamic play while maintaining flexibility in setup. The bottom plate features a specialized 40mm-thick cushion pad that absorbs impact, reducing injury risk for athletes making dives or collisions near the net. Additionally, the embedded portion consists of Ø102mm seamless steel pipe with a precision-fitted copper cap for corrosion resistance and longevity in harsh weather conditions.

A standout innovation lies in the stainless steel net ring equipped with an automatic locking system via a screw drive mechanism. This feature enables quick, secure tensioning of the net rope using a copper handle—no tools required. The bevel gear transmission system paired with trapezoidal threads ensures accurate lift control, allowing users to fine-tune the net height to match competition rules or personal preferences. It's especially beneficial for multi-purpose sports areas where frequent adjustments are necessary.

To enhance user safety and visual appeal, each pole is wrapped in a custom-fit EVA foam cover measuring 1.85 meters in length. Available in vibrant colors such as yellow, blue, and green, these covers not only provide impact absorption during play but also improve visibility on the court. They are designed to resist UV degradation, tearing, and abrasion—ensuring long-lasting performance even in direct sunlight or humid environments.

All metal components undergo industrial-grade surface treatment: shot blasting followed by sandblasting, then powder coating with epoxy-based resin applied via automated spray lines. The resulting finish ranges between 80–120 microns thick, providing excellent resistance to rust, chipping, and environmental wear. This ensures the volleyball system remains functional and aesthetically pleasing over many years of regular use, whether indoors or outdoors.

Common applications include school gymnasiums, community centers, fitness clubs, beach volleyball setups, and competitive training facilities. Its modular design supports easy assembly and disassembly, making it ideal for temporary installations or seasonal events. Because it doesn't rely on anchoring systems that damage surfaces, it’s particularly suitable for grass fields, concrete courts, or indoor hardwood floors where drilling or cementing isn’t feasible.

Users consistently praise the system’s stability during intense matches, noting minimal sway even when players jump or slam the ball against the net. Many appreciate how the color-coded EVA covers make the poles visually distinct, improving player awareness and reducing accidental contact. Others highlight the ease of adjusting the net height—especially helpful when transitioning between different age groups or skill levels within a single session.

Some frequently asked questions include: “Is the pole suitable for permanent outdoor installation?” Yes—it’s built to withstand wind loads and temperature fluctuations typical in most global regions outside Asia-Pacific. “Can I change the net height easily?” Absolutely—the lifting mechanism requires minimal effort and can be operated by one person. “How do I maintain the pole?” Simply wipe down with mild detergent and water periodically; avoid abrasive cleaners that could degrade the powder coating. “What if the net rope loosens?” The locking handle lets you re-tension quickly without needing additional hardware.
